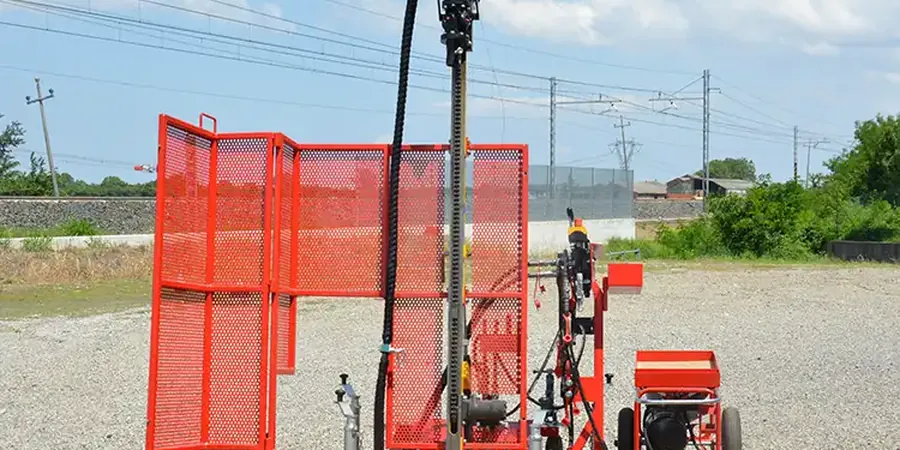

Soil conditions in Fullerton vary significantly between the flat alluvial plains near the Santa Ana River and the steeper terrain around Coyote Hills. In the downtown area, we often encounter dense sands and silty clays from the old river channels, while the residential zones near Hillcrest Park sit on deeper, looser deposits. That contrast means a single approach to foundation design won't work citywide. We rely on the Standard Penetration Test (SPT) to capture that variability—driving a split-spoon sampler under controlled energy and recording blow counts per foot. It's a direct measurement of soil resistance, not a lab extrapolation. For projects on softer ground, combining SPT data with a losa de cimentación analysis helps determine whether a mat foundation is needed to spread loads evenly.
SPT blow counts from the same borehole can jump from N=4 to N=30 within 8 feet—that transition defines your foundation depth and footing size.
Methodology and scope
Local considerations
A 14-story condominium project near Commonwealth Avenue hit a snag when initial SPT borings showed blow counts of N=8 in the upper 15 feet—loose, water-bearing sands that would settle under the design load. The geotechnical report originally assumed N=25. Without the SPT data, the foundation would have been undersized. We drilled deeper and found a dense gravel layer at 28 feet with N=45. That shifted the design from a mat to drilled piers bearing on the gravel. The lesson is direct: skipping or cheaping out on SPT borings in Fullerton's variable alluvium can lead to differential settlement or foundation failure within the first decade.
Applicable standards
ASTM D1586-18 (Standard Test Method for SPT), ASTM D2487-17 (Unified Soil Classification System), ASCE 7-22 (Minimum Design Loads, Section 12.13 – Site Class definition via N-value)
Associated technical services
SPT with Seismic Downhole (Vs30)
For projects requiring seismic site classification per ASCE 7, we combine SPT borings with downhole shear-wave velocity measurements. This gives you both N-values and Vs30 for Site Class D vs. C determination. Useful for schools, hospitals, and multi-story buildings in Fullerton's moderate seismic zone.
SPT with Continuous Soil Sampling
When you need more than blow counts—such as for liquefaction triggering evaluation or collapse potential in silt layers—we run SPT at 2.5-ft intervals and retrieve undisturbed tube samples. The lab then performs index testing and triaxial shear on the same strata. This integrated approach saves time versus separate sampling campaigns.
Typical parameters
Frequently asked questions
How deep are SPT borings typically required for a single-family home in Fullerton?
For a typical residential slab-on-grade or shallow footing, we drill to 15-20 feet or until we reach competent material with N-value greater than 25. In areas near the Santa Ana River, deeper borings (25-30 ft) are common due to loose sand layers.
What is the difference between N-value and corrected N60 in SPT testing?
The raw N-value is the sum of blows for the last 12 inches of penetration using the field hammer energy. N60 corrects that value to a reference 60% energy ratio, removing the influence of different hammers and anvil systems. We report both in our logs, but N60 is used for bearing capacity and liquefaction correlations.
How much does an SPT investigation cost for a small commercial lot in Fullerton?
A typical SPT program with two borings to 30 feet, including logging and a basic lab report, ranges between US$480 and US$840 per boring. The final price depends on access constraints, number of samples, and whether downhole seismic or undisturbed sampling is added.
Can SPT detect liquefaction hazard in Fullerton's soil?
Yes. SPT N-values are the primary input for the simplified liquefaction triggering procedure (Youd-Idriss 2001). In Fullerton, areas with shallow groundwater and loose silty sands (N < 15) below the water table are considered susceptible. We factor in fines content from laboratory sieve analysis to adjust the cyclic resistance ratio.
