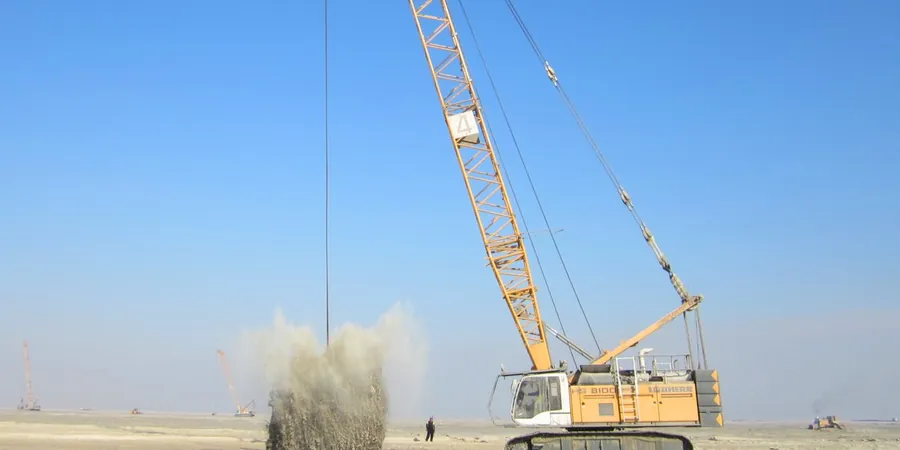

Fullerton sits on deep alluvial deposits from the Santa Ana River system. We see loose granular soils down to 12 meters in many industrial lots. Standard shallow compaction cannot reach those depths. Our dynamic compaction design tackles this directly. A 15-ton tamper dropped from 20 meters rearranges the soil matrix at depth. We combine this with deep soil mixing for zones where fines content exceeds 25%. That hybrid approach saves weeks compared to full excavation. Every project starts with a site-specific energy calculation based on target N-values from ASTM D1586 borings. We have applied this method on over 40 sites across Orange County.
A 15-ton tamper dropped from 20 meters rearranges the soil matrix at depth. That hybrid approach saves weeks compared to full excavation.
Methodology and scope
Local considerations
A common mistake in Fullerton is assuming one energy level works for the entire site. We have seen contractors apply uniform drops across variable fill zones. That leaves loose pockets that later cause differential settlement under slab loads. Another error is skipping pre-compaction moisture conditioning. Dry granular soils do not transmit energy effectively. The tamper just bounces. We always run a moisture-density relationship test first. A third issue is not accounting for groundwater within 3 meters of the surface. High pore pressure can reduce compaction efficiency. We install relief wells or apply a surcharge delay when needed.
Applicable standards
ASCE 7-16 (Chapter 20 — Soil Structure Interaction), IBC 2021 (Section 1806 — Presumptive Load-Bearing Values), ASTM D1586-18 (Standard Test Method for SPT), ASTM D1195-64 — Plate Load Test
Associated technical services
Energy Calculation per Zone
We divide the site into compaction zones based on soil type and target density. Each zone receives a specific energy input calculated from SPT blow counts and depth of loose material. This avoids overcompaction or undercompaction.
Vibration Monitoring Plan
We design a monitoring network of accelerometers and seismographs. Our team sets alarm thresholds for particle velocity to protect nearby structures. Continuous data feeds to a remote dashboard during the compaction campaign.
Post-Compaction Verification
After the final pass we perform SPT borings and plate load tests at random locations. We compare results against the design N-values and settlement criteria. A final report includes density profiles and acceptance recommendations.
Groundwater Control Measures
For sites where water table lies within the compaction depth, we design temporary dewatering wells or drainage blankets. We also evaluate the need for a waiting period between passes to allow pore pressure dissipation.
Typical parameters
Frequently asked questions
How does dynamic compaction design differ for Fullerton's alluvial soils compared to other sites?
Fullerton's alluvial deposits have a high silt fraction from Santa Ana River flooding. That silt reduces energy transfer efficiency. Our design increases the required energy by 15 to 20 percent compared to clean sand sites. We also specify a higher number of passes to break down clay lenses.
What is the typical cost range for dynamic compaction design in Fullerton?
The cost typically ranges between US$1,260 and US$4,240 per project depending on site area and depth of treatment. The fee covers site investigation, energy calculations, monitoring plan, and final verification. Large industrial lots with multiple zones may reach the upper end.
Can dynamic compaction be used near existing buildings in downtown Fullerton?
Yes, but with restrictions. We first conduct a response seismic site analysis to set maximum allowable vibration levels. We then reduce tamper weight and drop height accordingly. For structures within 15 meters we may switch to a light tamping program or use an alternative method like deep soil mixing.
How long does a typical dynamic compaction campaign take for a 2-acre site?
A 2-acre site usually takes 3 to 5 weeks for the primary and secondary passes. Add 1 week for pre-compaction testing and 1 week for post-compaction verification. Total mobilization to final report is around 6 to 8 weeks. Weather delays for rain can add time because wet soil reduces compaction efficiency.
