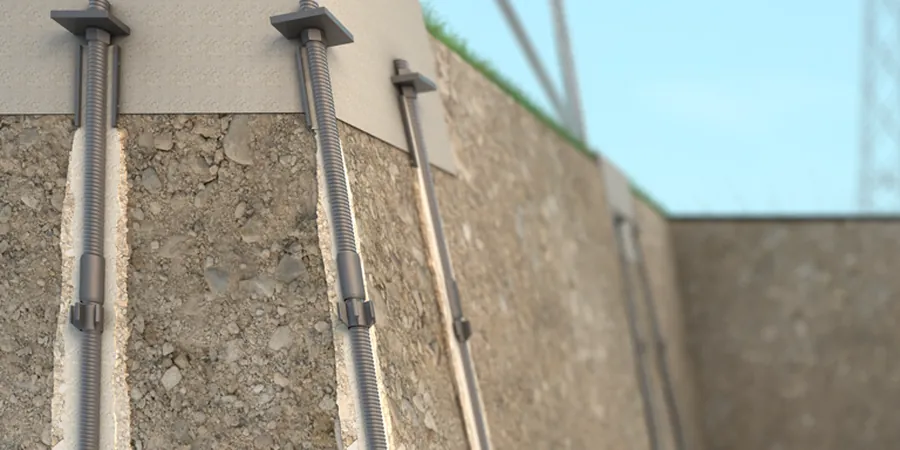

Fullerton sits atop a mix of alluvial fans and ancient river deposits that create highly variable bearing strata just a few feet apart. Under IBC 2018 and ASCE 7-16, any structure in this zone must account for site class D or even E soils, which makes micropile design the preferred solution when shallow foundations cannot deliver the required capacity or settlement control. Our team integrates local geotechnical data with structural loading demands to produce a micropile scheme that transfers loads through weak upper layers into competent horizons. Before finalizing the layout, we often run an ensayo SPT to confirm blow counts at each pile location and cross-check with respuesta sísmica models to ensure the system responds correctly under earthquake shaking.
Micropile design in Fullerton must account for site class D/E soils and variable alluvial profiles to meet IBC settlement limits.
Methodology and scope
Local considerations
Fullerton lies within the Puente Hills seismic zone, with a 2% probability of exceedance in 50 years peak ground acceleration of 0.6g. The 1987 Whittier Narrows earthquake (M5.9) caused extensive liquefaction in the nearby Los Angeles Basin, and similar loose sands exist beneath parts of Fullerton. If a micropile system is not designed with adequate ductility and strain compatibility between the steel core and surrounding grout, sudden brittle failure can occur during cyclic loading. We review each design against NCEER 2001 liquefaction triggering curves and add anti-buckling checks for the top 10 feet where lateral spreading may develop.
Applicable standards
IBC 2018 Chapter 18 – Soils and Foundations, ASCE 7-16 – Minimum Design Loads (Seismic Site Class D/E), ASTM A615/A722 – Steel Reinforcement Bars, FHWA-NHI-16-072 – Micropile Design & Construction
Associated technical services
Standard Micropile Design — Gravity Loads Only
For low- to mid-rise structures where lateral demands are modest, we deliver a prescriptive design per IBC Chapter 18 with minimum spacing of 4 pile diameters, 4-bar cage, and a compression load test to 200% of working load. Fullerton's alluvial conditions are handled with a conservative skin friction factor of 0.5 to 0.7 times the SPT N-value (blows/ft).
Seismic Micropile Design — Lateral & Cyclic Resistance
When the project requires ductile behavior under earthquake loads, we perform a nonlinear pushover analysis of each pile group, verify plastic hinge rotation at the pile-to-cap connection, and specify a minimum embedment of 20 feet into the competent layer. This service includes a site-specific response spectrum and liquefaction-induced downdrag evaluation for Fullerton.
Typical parameters
Frequently asked questions
How does the soil variability in Fullerton affect micropile design parameters?
Fullerton's alluvial fans produce erratic SPT blow counts: you can see N=5 in one borehole and N=35 in another just 30 feet away. We require a minimum of one test pile per 5,000 square feet of building footprint to calibrate shaft friction and end-bearing values for each soil unit. This avoids under-design in soft pockets and over-design in stiff lenses.
What is the typical cost range for a micropile design in Fullerton?
For a standard gravity-load project, the design fee typically falls between US$1.330 and US$4.440, depending on the number of load tests and the complexity of the seismic analysis. The range covers the geotechnical investigation, structural calculations, and shop drawings. Large projects or those requiring multiple proof tests may exceed this range.
Do I need a special corrosion protection system for micropiles in Fullerton?
Fullerton's groundwater is generally non-aggressive (pH 6.5–7.5, chlorides <500 ppm), so standard galvanized centralizers and a 1.5-inch grout cover meet IBC requirements for dry or submerged interior exposure. For parking structures or bridges exposed to deicing salts, we specify epoxy-coated bars or a fully encapsulated plastic sheath per FHWA guidelines.
